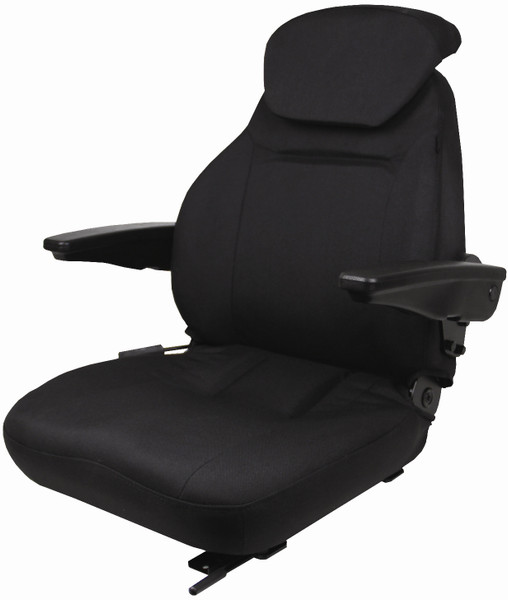

Premium High Back Tractor/Mower Seat with Cordura Fabric

Product Overview

Discription:

Premium high back seat featuring high density foam cushion, ultra tough Cordura fabric (Black) and drain hole. Comes with a universal slide system that fits almost all Zero Turn Mowers (ZTR).

Features:

High Density Foam Cushion
Ultra Tough Cordura Fabric (Black)
Adjustable Upper Backrest for Added Support
Adjustabel Backrest Angle
Adjustable Lumbar
Flip Up Adjustable Armrest
Contoured Base for Water Drainage & Airflow
Accepts Delta-type Operator Presence Switch
Slides for Universal Fit (7"-13.5" width)

Dimensions:

Click HERE for detailed dimensional information.

Basic Dimensions:
Seat Height: 26"-31"
Seat Length: 21.5"
Seat Width: 24"

Bolt patterns:
7"-13.5" wide universal slide system

Applications

Check Bolt Pattern to Ensure Proper Fit

Allis Chalmers Tractors: 6670, 6680, 6690, 8630, 8745, 8765, 8775, 8785, 9435, 9455, 9630, 9635, 9650, 9655, 9670, 9675, 9690, 9695, 9755, 9765, 9815

Case Dozer Crawlers, Excavators and Wheel Loaders:

Dozer Crawlers: 550H, 650H, 650K, 650L, 750H, 750K, 750L, 850H, 850K, 850L, 1150H, 1150K, 1650K, 1850K
Excavators: 880B, 880C, 880D, 980B, 1080B, 1280, 1280B, 9010, 9010B, 9020, 9020B, 9030, 9030B, 9040, 9040B, 9050, 9050B, 9060, 9060B
Wheel Loaders (must also replace the original suspension with the MSG95A24 Air Suspension (PN: 8076), MSG85 Mechanical Suspension (PN: 8077) or MSG95 Air Suspension (PN: 8078)): 21E, 221D, 221E, 321D, 321E, 521D, 521E, 621C, 621D, 621E, 721C, 721D, 721E, 821C, 821E, 921C, 921E, 1221E
Wheel Loaders (must also replace the original suspension with the Heavy-Duty Mechanical Suspension (PN: 6111): 621, 621B, 721, 721B, 821, 821B, 921, 921B, W11, W11B, W14B, W14C, W14FL, W18, W18B, W20, W20B, W20C, W24C, W36

Case IH Farmall, JX, Maxxum, MX Maxxum, MXU and Puma Series Tractors:

Farmall Series: 75C, 85U, 90, 95, 95C, 95U, 105U
JX Series: JX55, JX60, JX70, JX75, JX80, JX85, JX90, JX95
Maxxum Series: 110, 115, 120, 125, 130, 140
MX Maxxum Series: MX80C, MX90C, MX100, MX100C, MX120, MX135
MXU Series: MXU100, MXU110, MXU125, MXU130, MXU135
Puma Series: Puma 115, Puma 125, Puma 140, Puma 145, Puma 155, Puma 210

Caterpillar Excavators:

Excavators: 307 S SR, 308B SR, 308C, 308C CR, 313B CR, 313B SR, 321B
Excavator (must also replace the original suspension with the Heavy-Duty Mechanical Suspension (PN: 6111): 245B

Deutz-Allis Tractors with Original Grammer Seat: 7085, 7110, 7120, 7145, 9130, 9150, 9170, 9190

Dixon Lawn Mowers:

Blackbear Series: 34 (Year 2006)
Ram Series: 44 (Year 2004), 44 (Year 2005), 44 (Year 2006), 50 (Year 2004), 50 (Year 2005), 50 (Year 2006)
Ram 26HP B&S Series: 44 - 968999551 (Year 2007), 50 - 968999552 (Year 2007)
Ram B&S Series: 44 - 968999551 (Year 2008), 50 - 968999552 (Year 2008)

Replaces Dixon Part Numbers: 10727, 17560, 17855, 539117860

Ford-New Holland Tractors:

Tractors: 4835, 5635, 6635, 6640, 7410, 7635, 8560
T Series: T6070, T6080, T7030, T7040, T7070
TD Series: TD80D, TD95D, TD5030, TD5050
TL Series: TL70, TL80, TL90, TL100
TN Series: TN55D, TN55S, TN60DA, TN60SA, TN60VA, TN65D, TN65F, TN65S, TN65V, TN70D, TN70DA, TN70F, TN70NA, TN70S, TN70SA, TN70VA, TN75D, TN75DA, TN75F, TN75FA, TN75S, TN75SA, TN75V, TN80F, TN85DA, TN85FA, TN85SA, TN90F, TN95DA, TN95F, TN95FA, TN95NA, TN95VA
TS Series: TS90, TS100, TS110, TS115, TS115A, TS125A, TS130A, TS135A

Grasshopper Lawn Mowers: 218, 220, 223, 225, 227, 325, 329, 612, 614, 616, 618, 718, 721, 725, 1210, 1212, 1622, 1822D, 1822K, 321D, 322D, 428D, 620T, 718D, 718K, 720K, 721D, 721D2, 721DH2, 721G2, 722D2, 723KH2, 725K2, 727K2, 729G2, 928D, 928D2
Replaces Grasshopper Numbers: 603756, 603757, 603758, 603761, 603763, 604730, 604735, 604740, 604741, 604745

JCB Telehandlers (only fits if the original seat did NOT have a suspension): 1400, 1500B

John Deere Tractors with Original Grammer Seat and MSG83 Mechanical or MSG93 Air Suspension: 5083E, 5085E, 5093E, 5101E, 5220, 5225, 5320, 5325, 5420, 5425, 5520, 5525, 5603, 5625, 6110, 6110L, 6120, 6120L, 6200, 6200L, 6210, 6210L, 6215, 6220, 6220L, 6230, 6300, 6300L, 6310, 6310L, 6320, 6330, 6400, 6400L, 6403, 6405, 6410, 6410L, 6415, 6420, 6430, 6500, 6500L, 6510L, 6603, 6605, 6615, 6715, 7130, 7230, 7330

John Deere Backhoe Loaders, Excavators, Mini Excavators and Wheel Loaders:

Backhoe Loaders: 210C, 300D, 310C, 310D, 410B, 410C, 410D, 510B, 510C, 510D, 610B, 610C, 710B, 710C, 710D
Excavators (only fits if the original seat did NOT have a suspension): 70, 70D, 75C, 290D, 490, 490D, 490E, 495D, 590D, 595D, 690, 690A, 690B, 690C, 690CR, 690D, 690DR, 790, 790D, 792, 890, 890A, 990
Mini Excavators: 17D, 85D
Wheel Loader: 84, 244E, 244H, 444, 444C, 444CH, 444D, 544, 544A, 544B, 544C, 544D, 644A, 644B, 644C, 644D

Komatsu Backhoe Loaders, Excavators and Wheel Loaders:

Backhoe Loaders (must also replace the original suspension with the Heavy-Duty Mechanical Suspension (PN: 6111) and the original swivel with the Swivel 50 (PN: 5005): WB140-2, WB140PS-2, WB146-5, WB146PS-5, WB150-2, WB150AWS-2, WB150PS-2, WB93R-2, WB93R-5, WB97R-2, WB97R-5, WB97R-5E0, WB97S-2, WB97S-5, WB97S-5E0
Excavators: PC03-2, PC100-5, PC100-6, PC120-3, PC120-6, PC1250-7, PC128US-2, PC128UU-1, PC128UU-2, PC12R-8, PC130-6, PC130-6K, PC130-7, PC130-7K, PC138US-8, PC150-5, PC150LC-3, PC150LC-6K, PC160-6K, PC160LC-7K, PC180LC-5K, PC200-3, PC200-5, PC200-6, PC2007-7, PC200-8, PC200LC-3, PC200LC-5, PC200LC-6S, PC200LC-7, PC200LC-8, PC200LC-81, PC20-6, PC20-7, PC210-6K, PC210-7K, PC210-8K, PC210LC-5K, PC210LC-6K, PC210LC-7K, PC210LC-8K, PC220-2, PC220-3, PC220-5, PC220-5C, PC220-6, PC220-7, PC220LC-2, PC220LC-3, PC220LC-5, PC220LC-6, PC228US-1, PC228UU-1, PC240NLC-5K, PC250-6, PC250LC-6, PC270LC-7L, PC27R-8, PC290NLL-6K, PC300-3, PC300-6, PC300HD-5K, PC300LC-3, PC300LC-8, PC30-6, PC340-6K, PC340LC-6K, PC350LC-8, PC35-8, PC360-7, PC38UU-1, PC38UU-3, PC400-6Z, PC400-8, PC400LC-3, PC400LC-6, PC400LC-8, PC40-7, PC450-7K, PC450LC-6K, PC450LC-6K-KE, PC450LC-8, PC45-1, PC45R-8, PC50UU-2, PC60-5, PC60-6, PC60-7, PC75UU-1, PC75UU-2, PC75UU-3, PC8MR-6, PC88MR-8, PC90-1, PC95-1, PC95R-2
Wheel Loaders: WA100-1, WA100-3A, WA120-1, WA120-E, WA150-1, WA150-5, WA180-1, WA180-E, WA200-5, WA200PT-5, WA200PZ-6, WA250-1, WA250-3, WA250-5, WA250-6, WA250PT-3, WA250PT-5, WA30-2, WA320-1, WA320PZ-6, WA350-1, WA380-1, WA380-DZ-3, WA400-1, WA40-3, WA420-1, WA450-1, WA470-1, WA470-DZ-3, WA500-1, WA70-1, WA80-3, WZ240-DZ-3, WZ600-1

Massey Ferguson Tractors with Original Grammer Seat: 471, 481, 491, 492, 573, 583, 593, 596, 670, 690, 698, 699, 2220, 2640, 2650, 2660, 2670, 2680, 3060, 3070, 3075, 3120, 3315, 3325, 3330, 3340, 3350, 3355, 3525, 3545, 3615, 3625, 3635, 3645, 3650, 3660, 3680, 3690, 4225, 4235, 4240, 4243, 4245, 4253, 4255, 4260, 4263, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4370, 5425, 5435, 5445, 5455, 5460, 5465, 5470, 5475, 5480, 6150, 6170, 6180, 6190, 6235, 6245, 6255, 6270, 6280, 6290, 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, 6499, 7465, 7475, 7480, 7485, 7490, 7495, 7497, 7499, 8110, 8120, 8140, 8150, 8160, 8210, 8220, 8240, 8250, 8270, 8280, 8450, 8460, 8470, 8480, 8650, 8660, 8670, 8680, 8690

McCormick Tractors if Tractor has a Cab with Original Grammer Seat: CX75, CX85, CX90, CX95, CX105, CX110, MC90, MC100, MC105, MC110, MC115, MC120, MC130, MC135, MTX110, MTX120, MTX125, MTX135, MTX140, MTX145, MTX150, MTX165, MTX175, MTX185, MTX200, TTX190, TTX210, TTX230, XTX145, XTX165, XTX185, XTX200, XTX215, ZTX230, ZTX260, ZTX280

New Holland Backhoe Loaders, Dozers and Wheel Loaders:

Backhoe Loaders: 555E, 575E, 655E, 675E, B90B, B95, B95B, B95BLR, B95BTC, B95LR, B95TC, B110, B110B, LB90.B, LB95, LB110.B, LB115, LB115.B
Backhoe Loaders (only fits if the original seat did NOT have a suspension): 555, 555A, 555B, 555C, 555D, 575D, 655, 655A, 655C, 655D, 675D, LB75, LB75.B, LB90.B, LB110.B, LB620
Dozers: D75, D85, D85B, D95, D95B, D150, D150B, DC75, DC85, DC95, DC150.B, DC180.B
Wheel Loaders: LW50.B, LW80.B, W50BTC, W50TC, W60BTC, W70BTC, W80BTC, W80TC

Volvo Excavator and Wheel Loader:
